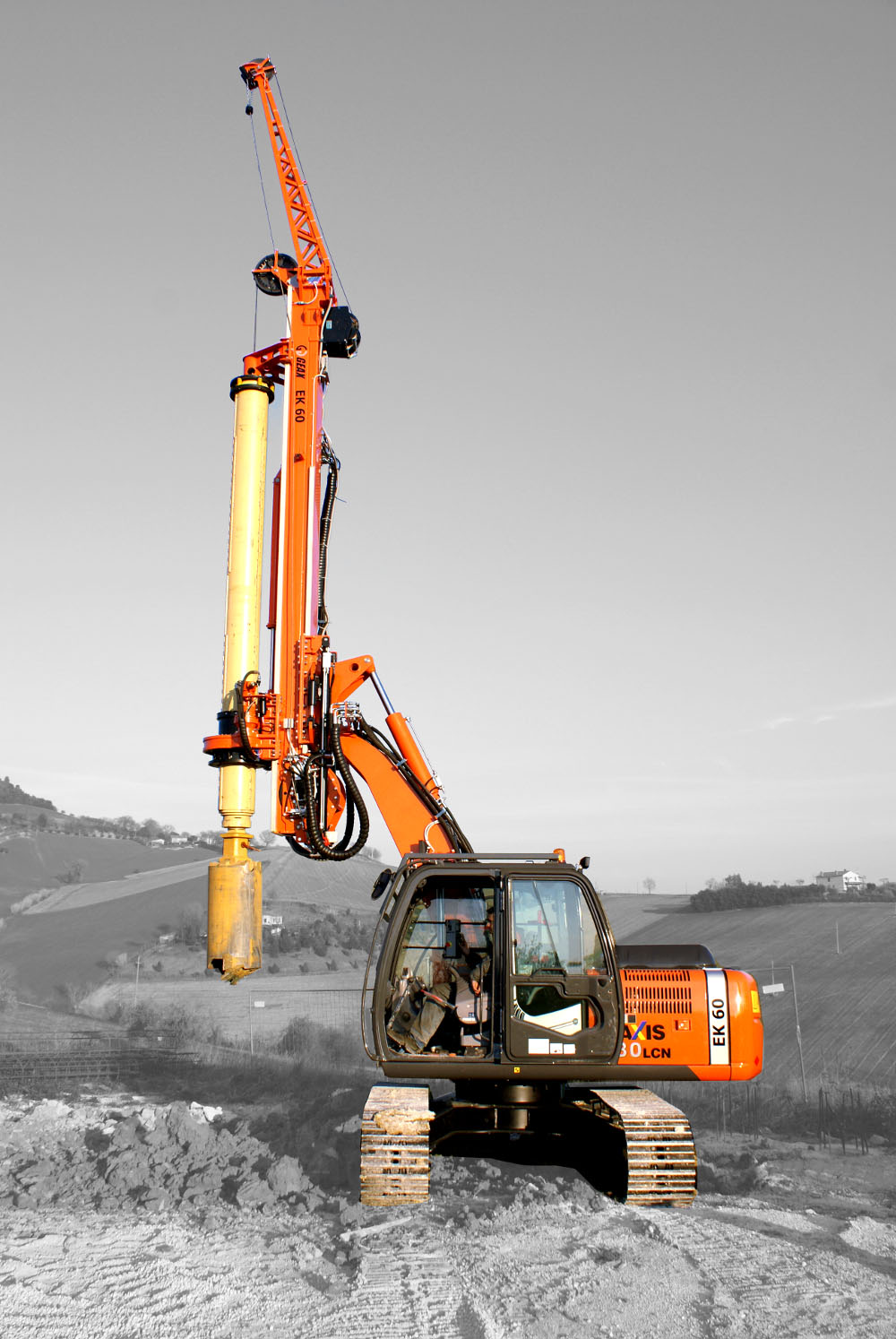

GEAX EK60 MULIT-PURPOSE PILING RIG
The GEAX EK60 is a multi-purpose piling rig designed to achieve the highest levels of versatility, maneuverability, ease of use transportation, production and reliability. For each drilling mode a special kit is designed to optimize performances.
CFA Kit Available
Max Depth: 70 ft
Max Diameter: 48 in
Engine Power: 93 hp
Width of Crawler: 8.25 ft
Main Winch Line Pull: 18,000 lbs
Aux Winch Line Pull: 5,600 lbs
Extraction Force: 40,000 lbs
Crowd Force: 15,750 lbs
Rotary Head Torque: 38,400 ft-lbs
Rotary Head Drilling Speed: 11-58 rpm
Weight: 37,400 lbs
Drilled shafts, also known as drilled piers, caissons, bored piles, or cast-in-drilled hole piles (CIDH), are high-capacity deep foundation systems. A drilled shaft is constructed by drilling a cylindrical borehole to design diameter and depth, lowering reinforcing steel (rebar) into the drilled shaft, and then filing the shaft concrete. The finished foundation element resists compression, tension, and lateral loads.
Access conditions required for drilled shaft construction are a variable as the diameters and depths to which they can be drilled. Drilled shafts can be constructed in low headroom and limited access and provide effective support for most structures, including buildings, tanks, towers, and bridges.
