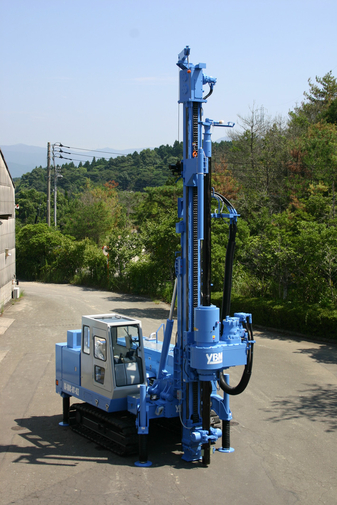

YBM GI-80 DRILL


Tech Specs
Dimensions: 25.9 x 6.6 x 8.2 ft
Weight: 20,680 lbs
Spindle Bore: 175 mm
Rotation Speed: up to 80 rpm
Rotation Torque: up to 39.2 kN-m
Feed Stroke: 5,000 mm
Feed Force: 83.3 kN
Feed Speed: 0-6 m/min
Leader Slide Device: 2,000 mm
Leader Swing Device: 5 degrees left & right
Hydraulic Capacity (Rotation): 130 L/min
Hydraulic Capacity (Feed): 46 L/min
