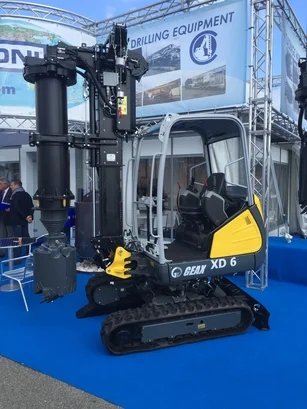

GEAX XD6 MINI PILING RIG
The GEAX XD Mini Piling Rig series machines are the smallest hydraulic piling rigs in the world. They are designed to work in extremely tight spaces, limited headroom and job sites difficult to access for any other standard piling rig.
GEAX XD6
Tech Specs
Minimum Working Height: 8.5 ft
Max Depth: 32 ft
Max Diameter: 20 in
Engine Power: 20 hp
Width of Crawler: 3.3-4.5 ft
Main Winch Line Pull: 1,800 lbs
Rotary Head Torque: 4,450 ft-lbs
Rotary Head Drilling Speed: 23-46 rpm
Weight: 5,300 lbs
LIMITED ACCESS DRILLING
Access restrictions, including working inside existing structures or under limited vertical clearance can be accommodated.
