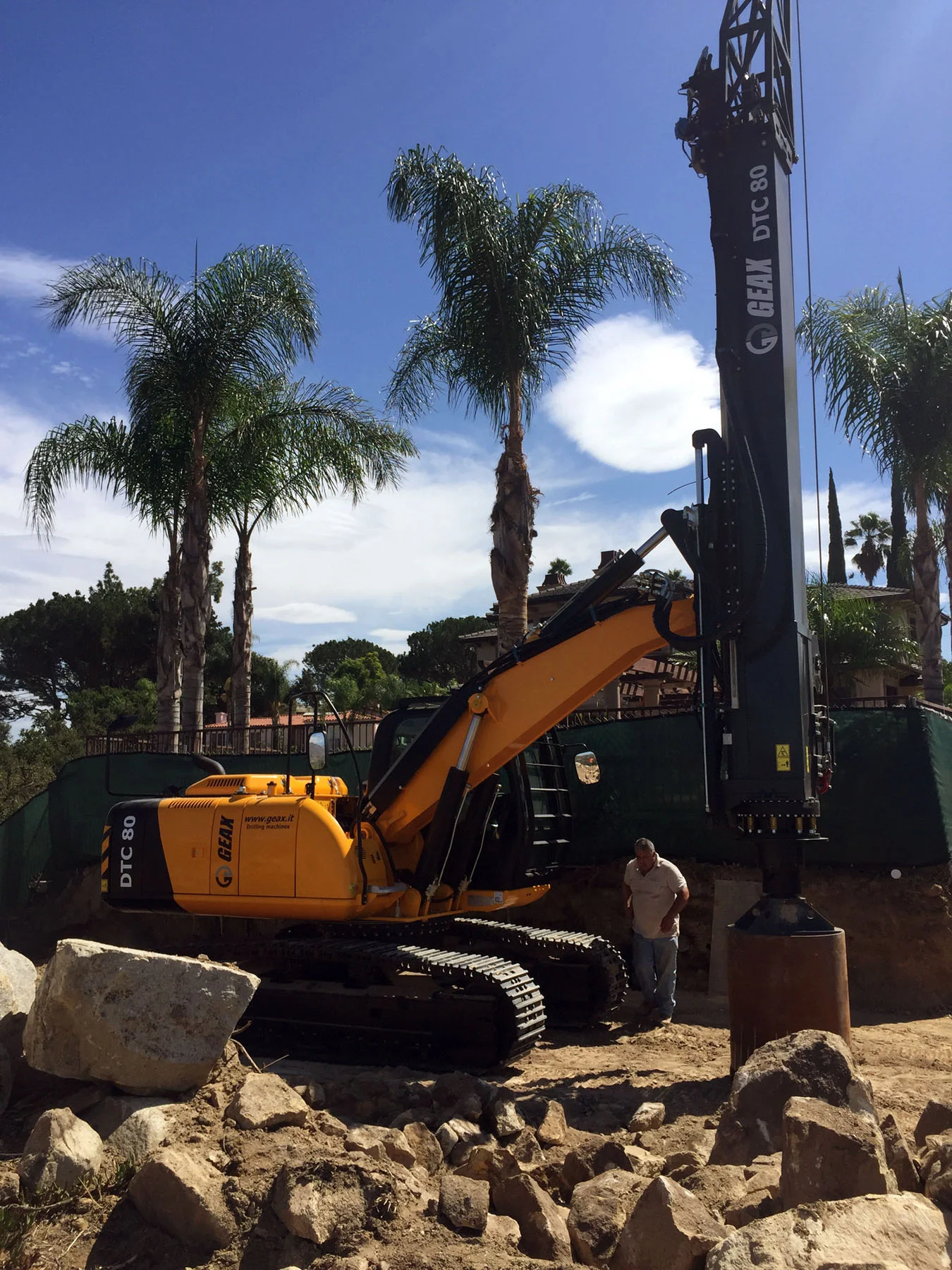

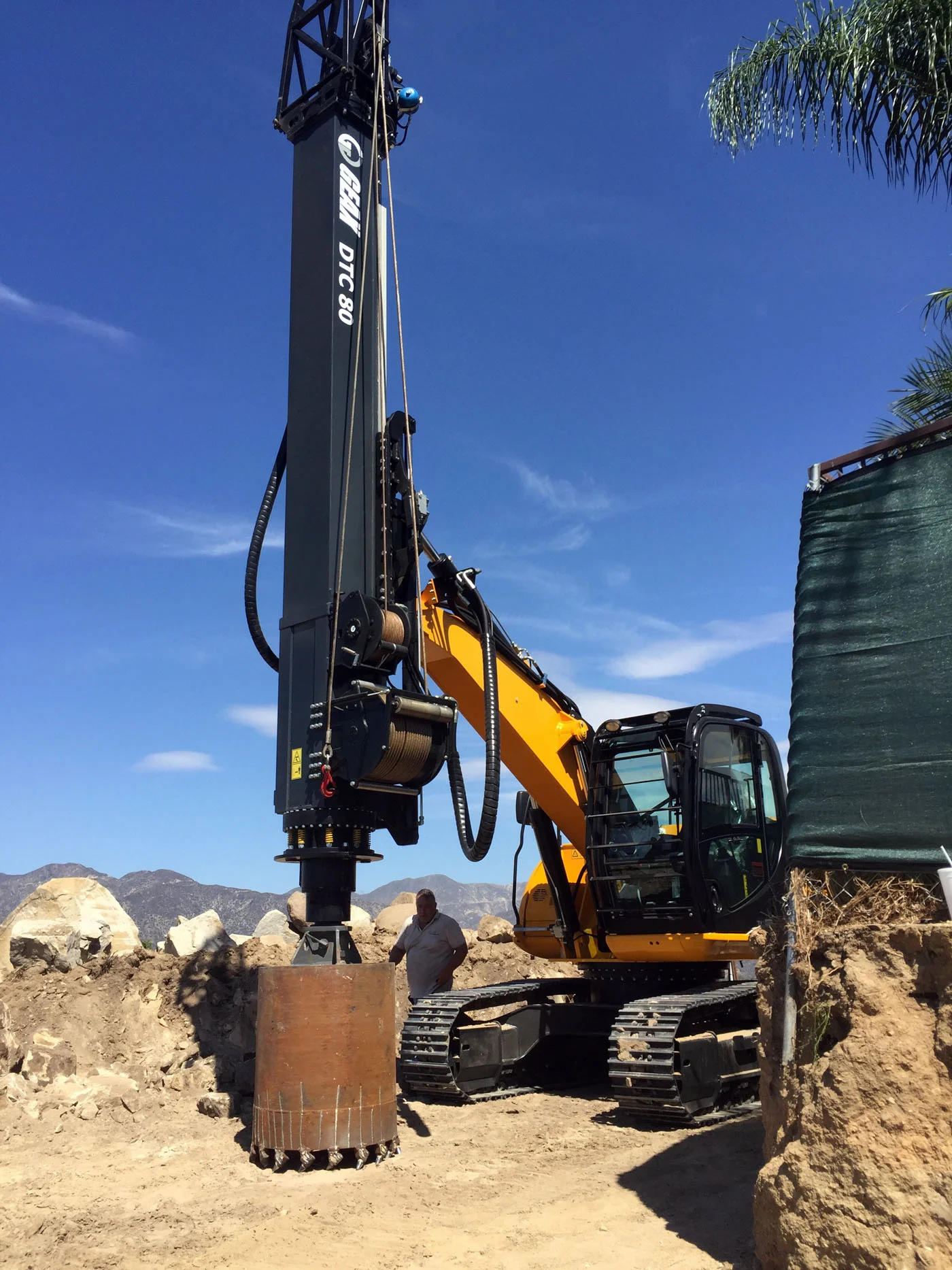

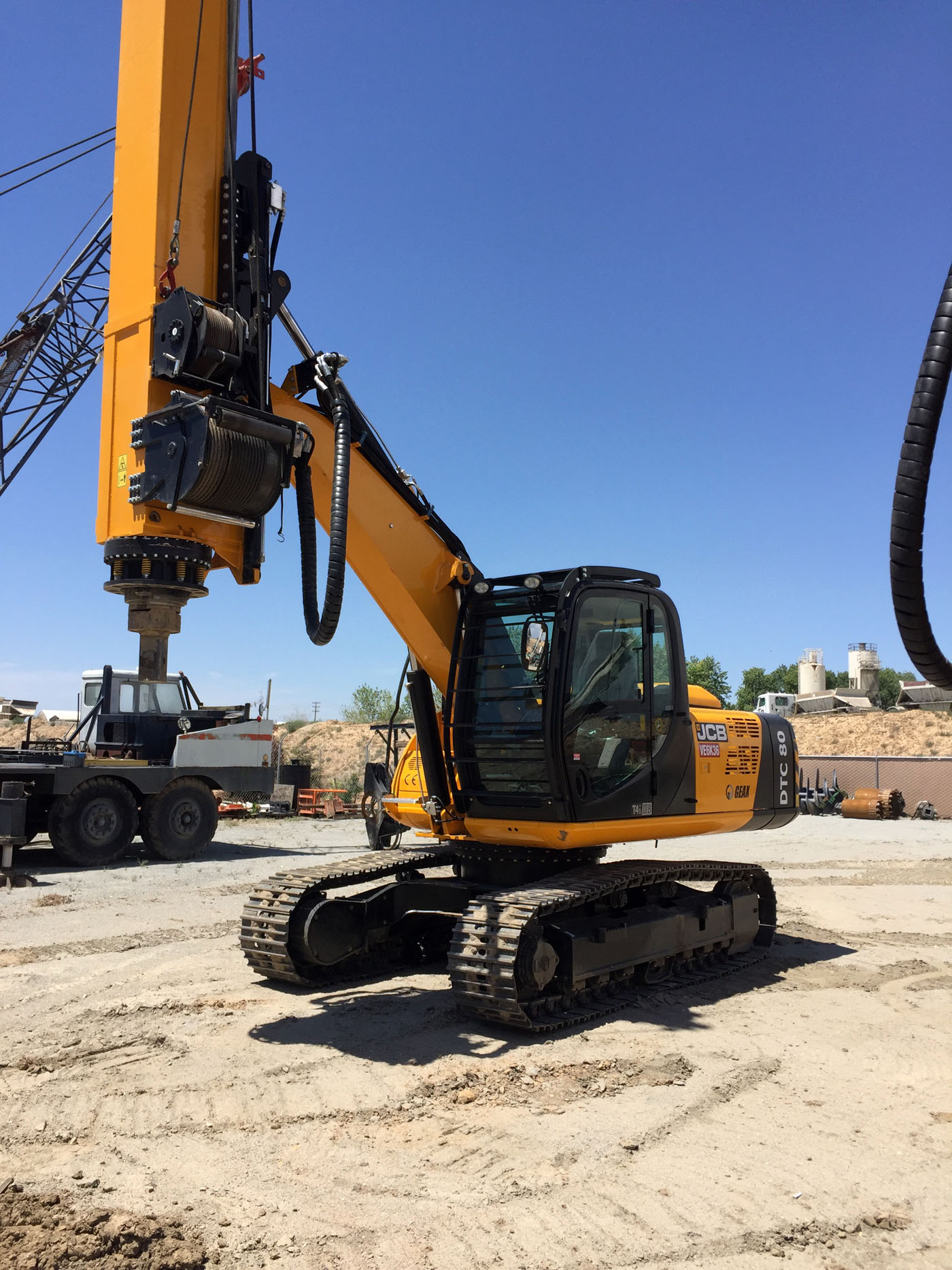

The DTC Compact Piling Rig series was designed to guarantee a superior agility in the jobsites, which results in high productivity comparable with much larger piling rigs.


Tech Specs
Max Depth: 102 ft
Max Diameter: 5 ft
Engine Power: 123 hp
Width of Crawler: 8.17 ft
Main Winch Line Pull: 26,978 lbs
Aux Winch Line Pull: 8,093 lbs
Rotary Head Torque: 60,483 ft-lbs
Max Drilling Speed: 10-40 rpm
Weight (w/o tool): 52,910 lbs

GEAX DTC80 Compact Piling Rig Brochure

GEAX DTC80 Compact Piling Rig Brochure

Drilled shafts, also known as drilled piers, caissons, bored piles, or cast-in-drilled hole piles (CIDH), are high-capacity deep foundation systems. A drilled shaft is constructed by drilling a cylindrical borehole to design diameter and depth, lowering reinforcing steel (rebar) into the drilled shaft, and then filing the shaft concrete. The finished foundation element resists compression, tension, and lateral loads.

Access conditions required for drilled shaft construction are a variable as the diameters and depths to which they can be drilled. Drilled shafts can be constructed in low headroom and limited access and provide effective support for most structures, including buildings, tanks, towers, and bridges.
