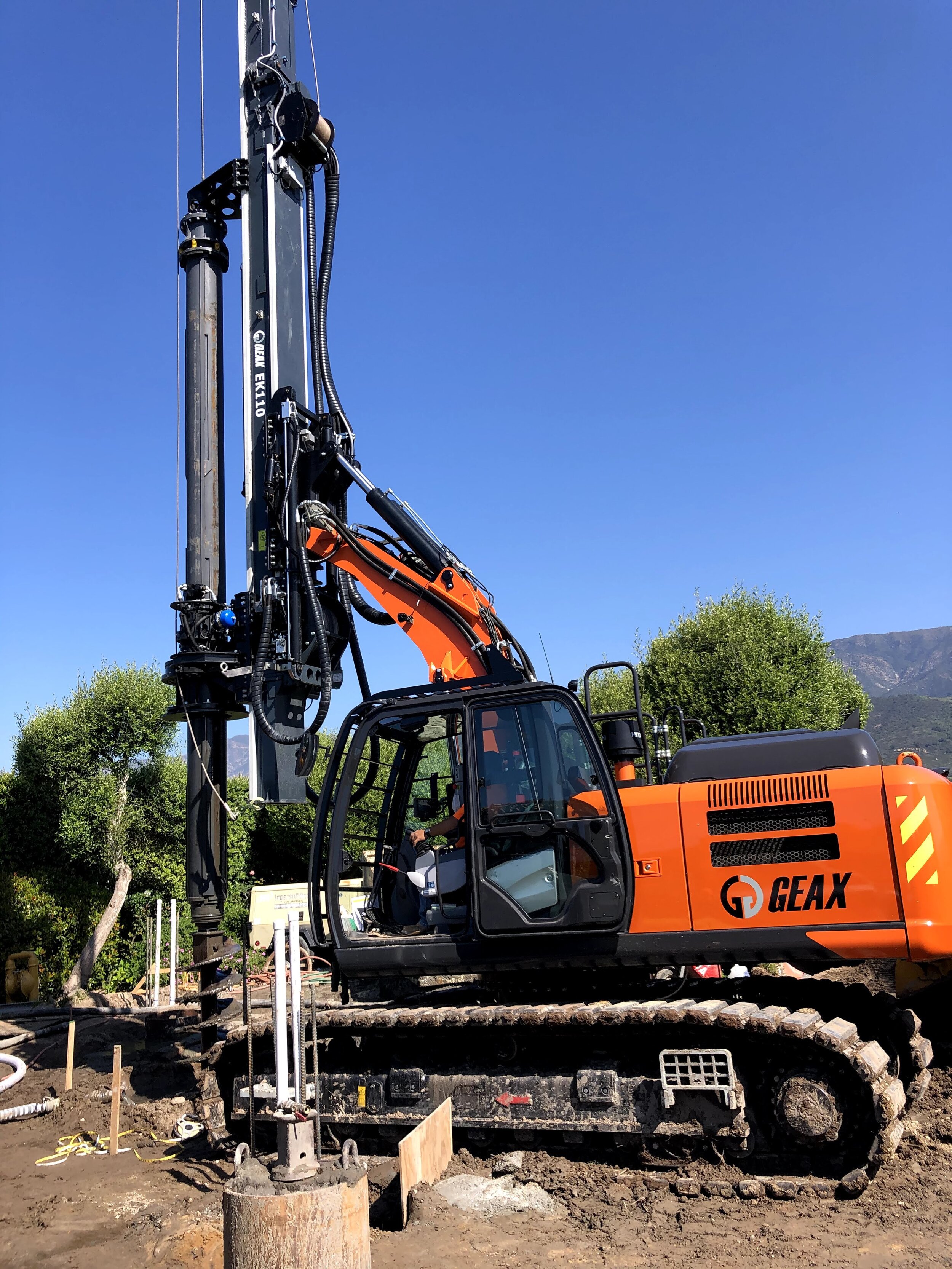

GEAX EK110 MULTI-PURPOSE PILING RIG

The GEAX EK110 is a multi-purpose piling rig designed to achieve the highest levels of versatility, maneuverability, ease of use transportation, production and reliability. It is configured to operate in various different piling modes. For each drilling mode a special kit is designed to optimize the performances.

GEAX EK110

Tech Specs
Max Depth: 102 ft
Max Diameter: 72 in
Engine Power: 172 hp
Width of Crawler: 8.25 ft
Main Winch Line Pull: 27,000 lbs
Aux Winch Line Pull: 8,300 lbs
Extraction Force: 40,500 lbs
Crowd Force: 33,750 lbs
Rotary Head Torque: 81,100 ft-lbs
Rotary Head Drilling Speed: 6-80 rpm
Weight: 66,100 lbs


GEAX EK110 Multi-Purpose Piling Rig Brochure

GEAX EK110 Multi-Purpose Piling Rig Brochure

Drilled shafts, also known as drilled piers, caissons, bored piles, or cast-in-drilled hole piles (CIDH), are high-capacity deep foundation systems. A drilled shaft is constructed by drilling a cylindrical borehole to design diameter and depth, lowering reinforcing steel (rebar) into the drilled shaft, and then filing the shaft concrete. The finished foundation element resists compression, tension, and lateral loads.

Access conditions required for drilled shaft construction are a variable as the diameters and depths to which they can be drilled. Drilled shafts can be constructed in low headroom and limited access and provide effective support for most structures, including buildings, tanks, towers, and bridges.
